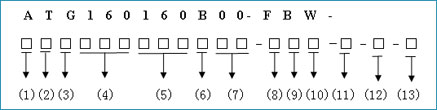

| （1）Product Category |
| Code |
Description |
| A |
AV-Display standard Modules |
| C |
AV-Display Custom-designed modules | |
| （2）Package |
| Code |
Description |
| B |
COB Type |
| G |
COG Type |
| T |
TAB Type |
| P |
SMT type |
| F |
COF Type | |
| （3）Display Type |
| Code |
Description |
| C |
Character type products |
| G |
Graphic type products |
| S |
Segment, Icon type products |
| Z |
Others | |
| （4）Display Resolution |
| Code |
Description |
| 111 |
Graphic：“ 111” refers to number of the lines in the display Character：“ 111” refers to the number of dots per line。nbsp; | |
| （5）Display resolution |
| Code |
Description |
| 222 |
(Graphic：“222” refers to the number of dots per column Character：“222” refers to the number of the lines in the display Segment/Icon：“222”refers to the segment/icon quantity | |
| （6）Serial Letter |
| Code |
Description |
| A~Z |
(1) ~ (6) same，outline dimension different, From A, B, C…X, Y, Z,AA,AB,AC…ZX,ZY,ZZ | |
| （7）Serial Number |
| Code |
Description |
| 00~99 |
(1) ~ (7) same but has different parameters, like LCD voltage、IC、Resistor, etc。 From 00, 01, 02…99 | |
| （8）LCD Mode |
| Code |
Description |
| T |
TN，Positive，Grey |
| N |
TN，Negative |
| H |
HTN，Positive |
| L |
HTN, Negative |
| G |
STN，Positive，Grey |
| Y |
STN，Positive，Y/G |
| B |
STN，Negative，Blue |
| F |
FSTN，Positive |
| M |
FSTN，Negative |
| D |
FFSTN，Negative | |
| （9）Polarizar type, operating temp and view angle |
| Code |
Description |
| A |
Reflective，normal (0~50℃)，6:00 |
| D |
Reflective，normal (0~50℃)，12:00 |
| G |
Reflective，wide，6:00 |
| J |
Reflective，wide，12:00 |
| B |
Transflective，normal (0~50℃)，6:00 |
| E |
Transflective，normal (0~50℃)，12:00 |
| H |
Transflective，wide，6:00 |
| K |
Transflective，wide，12:00 |
| C |
Transmissive，normal (0~50℃)，6:00 |
| F |
Transmissive，normal (0~50℃)，12:00 |
| I |
Transmissive，wide，6:00 |
| L |
Transmissive，wide，12:00 |
| Z |
Others | |
| （10）Backlight type |
| Code |
Description |
| N |
W/O backlight |
| B |
LED Blue |
| W |
LED White |
| Y |
LED Y/G |
| A |
LED Amber |
| R |
LED Red |
| O |
LED Orange |
| G |
LED Green |
| E |
EL Blue Green |
| D |
EL Orange / Yellow |
| T |
EL White |
| C |
CCFL White |
| S |
RGB |
| Z |
Others | |
| （11）Touch Panel (add-in) |
| Code |
Description |
| TP |
Products with Touch Panel. If without, it is blank. | |
| （12）Rohs compliant (add-in) |
| Code |
Description |
| R |
Products with ROHS compliant, if without, it is blank. | |
| （13）Extended number 01~99 (add-in) |
| Code |
Description |
| 01~99 |
Products with only different resistors/capacitance or jumper options or equivalent IC type, etc. | |
P.s: the part number can be in accordance with customer P/N under customer special
requirement (like DSPLY-15-07). |
